Grey 2000KG Electric Furnace For Aluminium Melting Holding Complete Combustion Crucible Furnace
Blue 2000KG Electric Furnace For Aluminium Melting Holding Complete Combustion Crucible Furnace
2000KG Blue Electric Furnace For Aluminium Alloy Melting HPD
Electric Heating Smelting Crucible Furnace
This furnace adopt split burner which has the feature of automatic ignition, automatic temperature control and complete combustion.
The detachable furnace bottom is built with special refractory material which prevents major damage in case liquid leaks.
The furnace body is scientifically made with low surface temperature and energy saving.
You can choose the fuel: Natural gas, Liquefied gas, Propane gas.
1. Melting Crucible Furnace Introduce
The crucible furnace uses high-quality resistance bands as heating elements. It is mainly
used for melting and heat preservation of aluminum alloys. It is suitable for degassing and
slagging before metal die casting, casting, and liquid die forging, alloy preparation, uniform
organization, temperature adjustment and other processes
2. Melting Crucible Furnace Data
| SN | Items | Data | Remarks |
| 1 | Efficient furnace capacity kg (Al) | 1780 | |
| 2 | Melting Rate kg/h (Al) | 280 | Inside the crucible there is already have 1/3 molten aluminum. |
| 5 | Maximum furnace temperature ℃ | 950 | |
| 6 | Precision of molten aluminum temperature control ℃ | ≤± 5 | |
| 7 | Temperature control mode | PID+Dual temperature control | |
| 8 | Crucible type and size mm | OD 880, d 350mm, H 1000 | BN800 Morgen |
| 9 | Furnace surface temperature rise ℃ | ≤50 | Except for the installation site of the heating tube, the discharge outlet and rising tube |
| 11 | Power Source | Voltage V | 380 | |
| Frequency HZ | 50 | |
| | | |
| 12 | Air Pressure MPa | 0.5-0.7 | |
3. Types
| Type | CRL-300 | CRL-500 | CRL-600 | CRL-800 | CRL-1000 | CRL-1200 |
| Capacity | 191KG | 338KG | 515KG | 763KG | 952KG | 1062KG
|

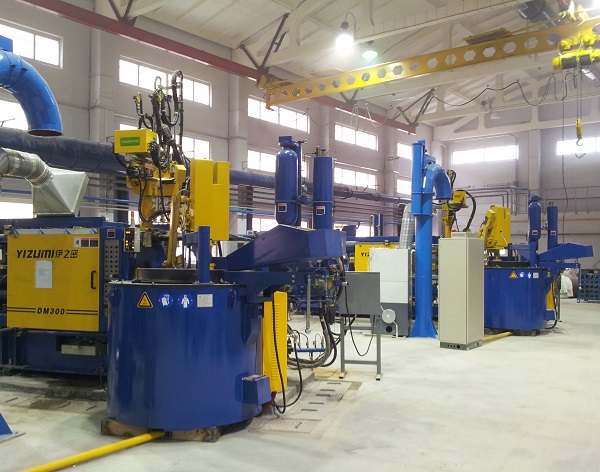

4. Picture Show
5. Hydeb Company Introduce
Founded in January 2003, the Jinan HYDEB Thermal Tech Co., Ltd. is located in Jinan High-tech Development Zone.
The Company mainly produces molten aluminum refining and degassing units, molten aluminum transfer ladles and
holding crucible furnaces, which are sold to well-known corporations in the industry at home and abroad,
meeting their high requirements for product safety and advancement.
6. FRQ
Q1: I know nothing about this machine, what kind of machine I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to
do by using this machine, then let us give you perfect solutions and suggestions.
Q2: When I get this machine, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk
by Telephone/ Skype / Whatsapp / Weichat/ E-mail.
Q3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
