Oil Fired Holding Furnace Aluminum Melting Machine Oil Fired 880mm 0.7mpa

  • 1
  • 2

Brand Name : Hydeb

Model Number : CRL-600

Certification : CE,ISO9001,ISO14001,IS45001,High-tech Enterprise

Place of Origin : China

MOQ : 1 set

Price : $ 20000-$50000/set

Payment Terms : T/T

Supply Ability : 20 sets per year

Delivery Time : 30 working days

Packaging Details : Pallet or Wooden Case

Key Words : Electric Heating 600KG Siliver Aluminum Alloy Melting Furnace For Alumium Alloy Die Casting

Furnace Material : Steel & Insulation Layer

Colour : Silvier

Max. Temperature : 980 ℃

Power Supply : Electricity

Furnace surface temperature rise ℃ : ≤50

Contact Now

Electric Heating 600KG Siliver Aluminum Alloy Melting Furnace For Alumium Alloy Die Casting



600KG Capacity Electric Heating Smelting Crucible Furnace



Crucible furnaces are small capacity furnaces used for small melting applications or exclusively as holding furnaces. The metal is placed or poured into a ceramic crucible which is contained in a circular furnace that is fired by a gas burner or heated by electric elements. The heating fuel is typically coke, oil, gas or electricity. Gas-fired crucible style furnaces offer the advantage of a high-volume melt capacity per square foot of floor space required. They are perhaps the most flexible of all furnace styles.



1. Furnace Introduce



-- Use in all foundries or aluminum die casting area

–  smeltery for feeding holding furnaces or for direct casting.

-- Low heat losses through high-quality insulation

-- No exhaust system needed

-- Accurate temperature control Crucible

-- Standard design for the use of graphite crucible



2. Furnace Specification



SN Items Data Remarks
1 Efficient furnace capacity kg (Al) 515
2 Melting Rate kg/h (Al) 280 Inside the crucible there is already have 1/3 molten aluminum.
5 Maximum furnace temperature ℃ 950
6 Precision of molten aluminum temperature control ℃ ≤± 5
7 Temperature control mode PID+Dual temperature control
8 Crucible type and size mm OD 880, d 350mm, H 1000

BN800

Morgen

9 Furnace surface temperature rise ℃ ≤50 Except for the installation site of the heating tube, the discharge outlet and rising tube
11 Power Source Voltage V 380
Frequency HZ 50

12 Air Pressure MPa 0.5-0.7



3. Furnace Types



Type CRL-300 CRL-500 CRL-600 CRL-800 CRL-1000 CRL-1200
Capacity 191KG 338KG 515KG 763KG 952KG 1062KG

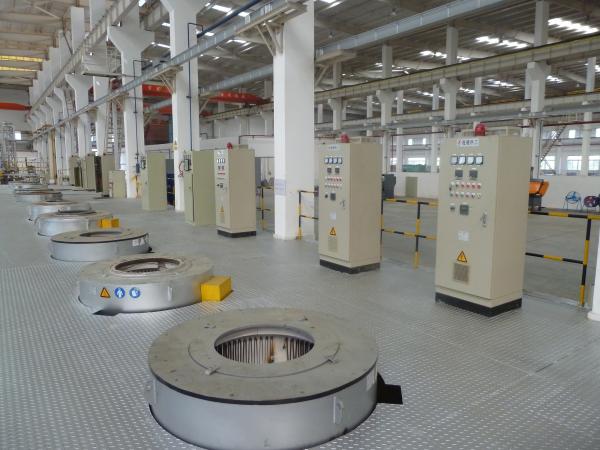

4. Furnace At Site







5. Company Introduce



--  Established in January 2003, and now has 56 employees
--  Sales of 50 million RMB in 2021
--  Focus on one industry -- "aluminum casting"

--  Has a complete product line of aluminum casting equipment, all products are independent research

    and development, manufacturing

-- aluminum melting and holding, transportation, ladle preheating, aluminum liquid refining, aluminum liquid
   hydrogen measurement, until aluminum solution aging treatment equipment

6. FRQ


Q1: I know nothing about this machine, what kind of machine I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to
do by using this machine, then let us give you perfect solutions and suggestions.


Q2: When I get this machine, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk
by Telephone/ Skype / Whatsapp / Weichat/ E-mail.


Q3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
